Creating Flexible Ducts

Flexible Ducts.

Command: fduct
Button: ()

You can create flexible ducts with this command.

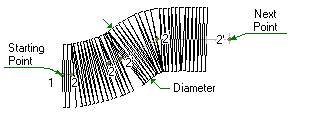

To create flexible ducts:

1. Specify the duct diameter:
2. Specify start point (1):
3. Specify next point (2):

This function will allow you to create professional HVAC CAD drawings.
