Working with Plumbing Lines

Plumbing Lines.

Command: ipipe
Button: ()

You can draw single pipe lines with this command.

To draw single pipes lines:

1. Specify the section scale factor:
2. Specify start point or [System](1):
3. Specify next point or [System](2):

In Isometric mode:

1. Specify the section scale factor:
2. Specify start point or [System](1):
3. Specify next point or [System](2):

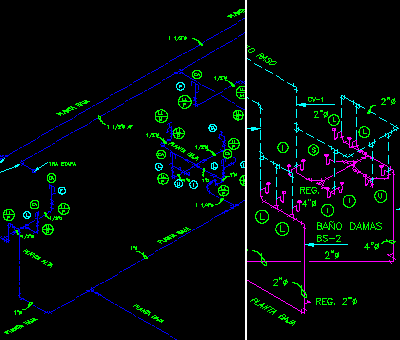

This function will allow you to create professional isometric piping quickly.

Isometric Plane in Trazar:

This command lets you preset automatically the components, valves and fittings in isometric mode before inserting a component in isoplanes. In the isoplane mode, you will create isometric piping quickly, such as valves, reduccers, elbows, strainners, unions, plugs, wyes, trap and more.

You can generate isometric piping from the orthograpic view using the function isovista of Trazar Software, click on (), of the toolbars buttons.

Trazar lets you create plumbing lines quickly.

To turn on an isometric plane:

1. In your CAD Software, from the Tool menu, choose Drafting Settings.
2. on the snap and Grid tab in the Drafting Settings dialog box under Snap Style & Type,
3. select Isometric Snap.
4. then click on "OK" button.
