Drawing Air Handling Units

Air Handling Units.

Command: ahu
Button: ()

This command displays the menu options for a specific ahu.

AHU [Single/Modular/Fan-Coil] <Single>:

To create single ahu.

From the menu options, select single ahu:
The follow menu will appear:

1. Specify the ahu front:
2. Specify the ahu depth:
3. Specify return section depth:
4. Specify center point for ahu (1):
5. Specify the ahu direction (2):

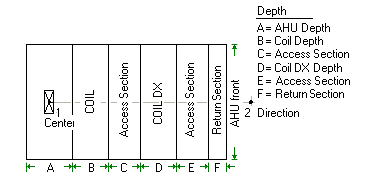

To create modular ahu.

From the menu options, select modular ahu:
The follow menu will appear:

1. Specify ahu front:
2. Specify ahu depth:
3. Specify coil depth:
4. Specify access section depth:
5. Specify coil DX depth:
6. Specify access section depth:
7. Specify return section depth:
8. Specify center point for ahu (1):
9. Specify the ahu direction (2):

To create fan-coil unit.

From the menu options, select fancoil unit:
The follow menu will appear:

1. Specify fan-coil width:
2. Specify fan-coil depth:
3. Specify center point for fan-coil (1):
4. Specify the fan-coil direction (2):

These functions will allow you to create professional HVAC CAD drawings.
