Creating Flat Oval Transitions

Flat Oval Transition.

Command: ltransition
Button: ()

This command displays the menu options for a specific transition.

Transition [Centered/Left/Right/Option] <Centered>:

To create double transitions:

From the menu options, select double transitions:
The follow menu will appear:

1. Specify the duct inlet width:
2. Specify the duct outlet width:
3. Specify start point (1):
4. Specify next point (2):

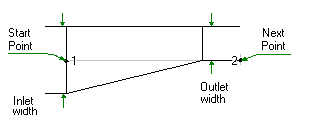

To create lower transitions:

From the menu options, select lower transitions:
The follow menu will appear:

1. Specify the duct inlet width:
2. Specify the duct outlet width:
3. Specify start point (1):
4. Specify next point (2):

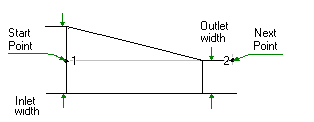

To create upper transitions:

From the menu options, select upper transitions:
The follow menu will appear:

1. Specify the duct inlet width:
2. Specify the duct outlet width:
3. Specify start point (1):
4. Specify next point (2):

This function to help make HVAC designs drawings.
